Programmable Attenuator; 8 Channel 0.05-8GHz 31.5dB; 19" 1U

Channels: 8, USB/Ethernet Programmable

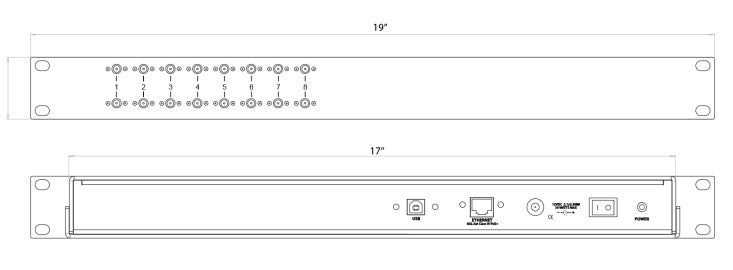

Housing: 19", 1 U
Impedance: 50 Ohm
Frequency: 50 - 8000 MHz
Attenuation range: 0 - 31.5 dB
Step width: 0.25 dB
Input RF Power: +33 dBm max.
Dwell Time: 1 ms
RF connection: SMA-f
RF Inputs: frontpanel, 8 pcs.
RF Outputs: frontpanel, 8 pcs.
Control: USB & Po

Insertion Loss Table:
1.6 dB typ @ 50 MHz
2.2 dB typ @ 2400 MHz
4.1 dB typ @ 6000 MHz
6.2 dB typ @ 8000 MHz

Included:
- USB cable type B & CAT5E- Ethernet cable.
- USB stick with manuals and software
- 2 years warranty
Rackmount Enclosure without display
