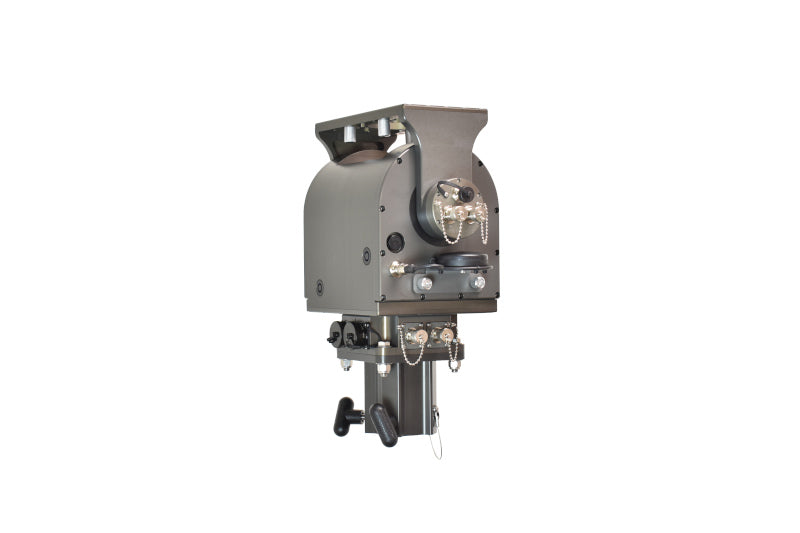

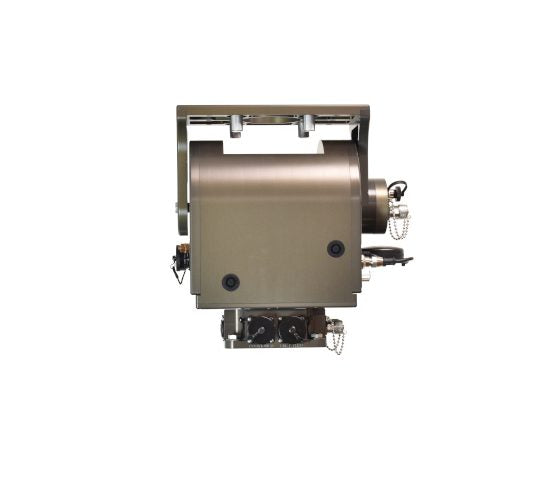

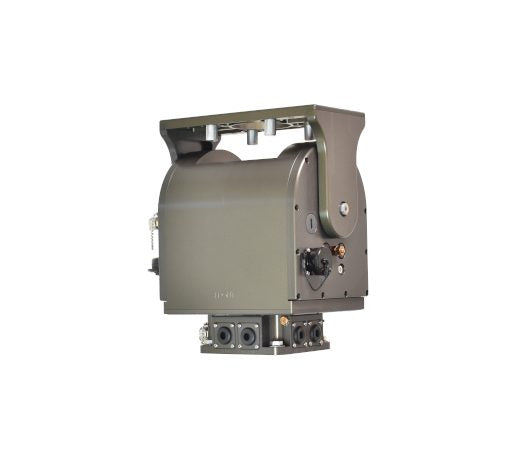

Antenna Positioner | 360° AZ, for 2ft Reflectors

Antenna Positioner | 360° AZ, for 2ft Reflectors

Herstellerartikelnummer: LinkAlign-360VPR-20

Power Over Ethernet (PoE) antenna positioner for 22kg payload (2ft Antennas), with 360° of azimuth and +/-95°of elevation range.

Technical Specifications
Power Over Ethernet (PoE): 50-57Vdc, 4 Pair PoE, Passive (Indoor Rated 50Vdc Supply Included)
Positioner Travel: Azimuth 440° (+/-220°); Elevation 190° (+/-95°)
Positioner Drive Rate:  Variable; AZ up to 4°/sec max load; EL up to 1°/sec max load
Dimensions: Height: 11.83" (30.0 cm), Width: 11.96" (30.4 cm), Depth: 6.75" (17.1 cm)
Weight: 29.5 lbs (13.4 kg)
Communication Interface: 1000 Mbps / 1 Gbps @ 100 MHz (Cat5e)

The detailed specifications can be found in the attached documents.

User Interface Overview: https://nextmovetech.com/products/user-interface/
